Flexscreen Pro (2025 Model)
Regular price
$179.99
$89.97
50% OFF
Flexscreen Pro (2025 Model)
Basic parameters
Model: B5303
Type: Portable car MP5
System: Allwinner melis system
Software solution: F133
Radio transmission frequency: 88.60/89.20/89.50/89.80/91.50/91.80/93/.00/93.60/93.90/94.50/95.10/95.70MHz
Radio transmitter IC: AB5301B
Power amplifier IC CS8571E
Output power: built-in 1W speaker
Working voltage: 12~30V
Working temperature: -10~60℃
Bluetooth version: version 5.0 (default name: CarPlay)
WiFi frequency: 2.4G/5G dual-band (automatically switches according to the frequency band of the hotspot connected to the mobile phone, used when connecting Android AUTO and Apple CARPLAY)
Performance parameters
CPU: F133
Running memory: 1Gbit DRAM
Display resolution: 1600x600
Screen size: 10.26 inches HD (IPS)

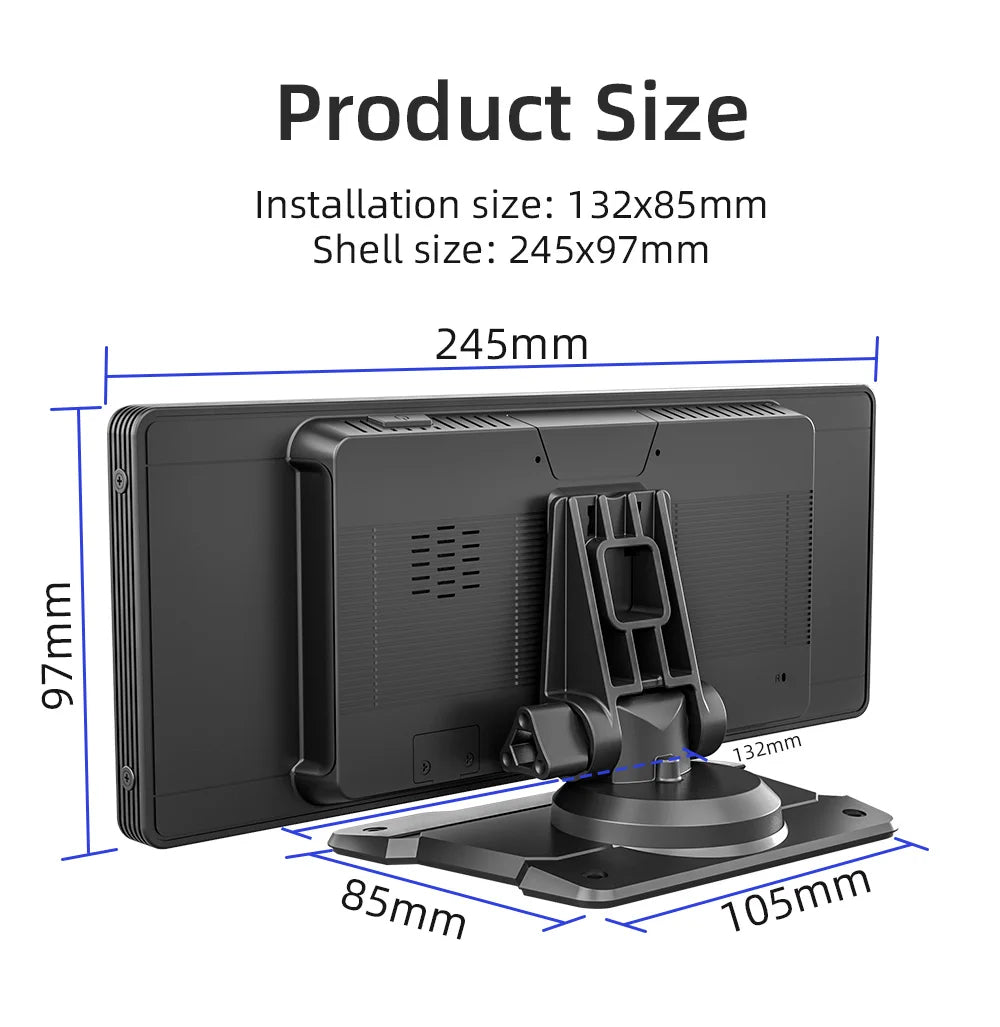

Size parameters
Installation size: 132x85MM
Case size: 245x97MM
Host depth: 25MM
Color box size: 275x127x97mm (gift box)
Function parameter
Mobile Internet: Support
Reversing image: Support
Play video warning: Support
Driving recorder: supported (recorder optional)

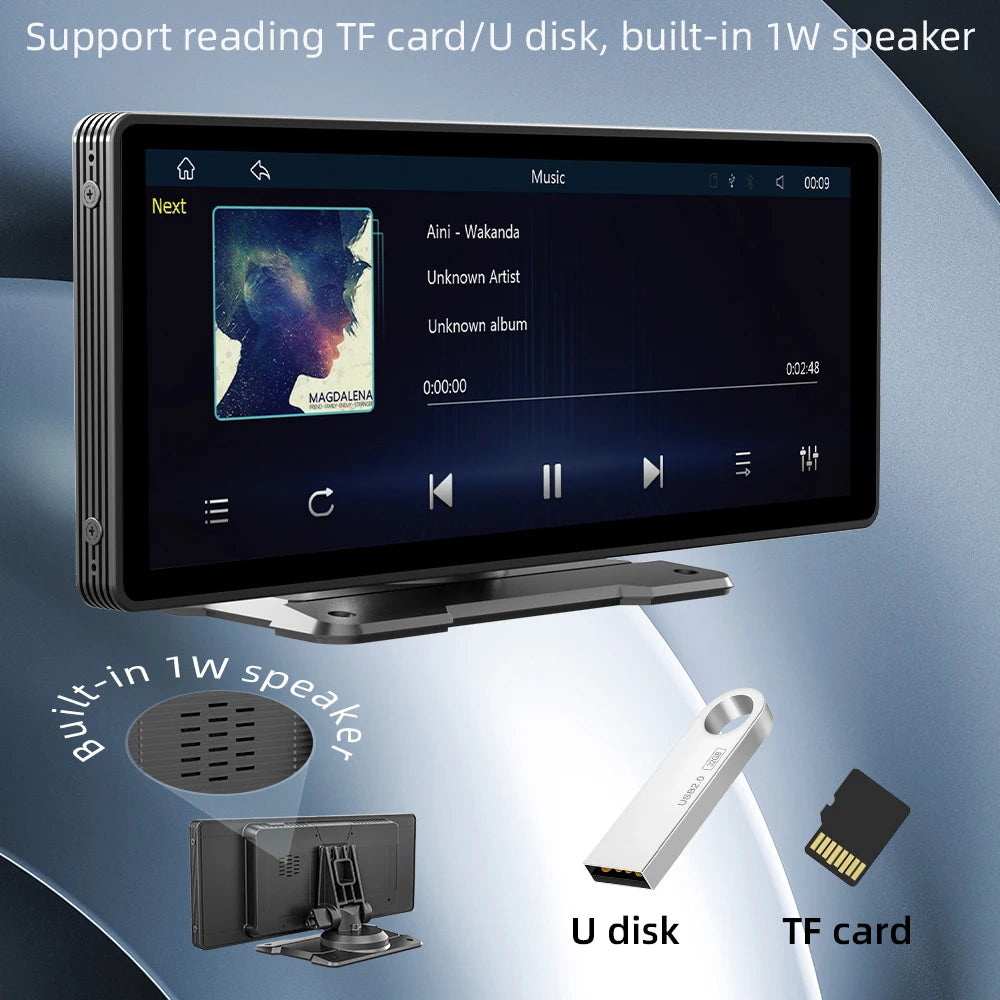

Built-in speaker: support
USB interface: USB 2.0
TF card: supported
AUX port parameters
Audio output: support
Reversing video input: support
Format parameters
Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV
Video format: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
Image format: JPEG/PNG/BMP/GIF/TIFF
Language parameters:
English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean, Thai
Other parameters
Factory setting password: 113266
Basic skills
1.Radio frequency transmitting function
2.SD card USB flash drive (audio/video/pictures)
3.Bluetooth function
4. Wired mobile phone screen projection, wired and wireless Android AUTO/Apple CarPlay
5. Rear view function (camera optional)
6.Audio output function
7. Driving recorder (recorder optional)
Q&A
Q: How do I connect carplay andAndroid car?
A: Search for the Bluetooth device /''carplay/''on your mobile phone. When you connect it for the first time, the mobile phone will pop up a prompt, please click to use or trust the device.
Q: How do I connect a mirror link?
A: Before the phone is connected, click on phoneLink function of the device, change the automatic connection option under the corresponding phone type to mirror, then connect the phone data cable, and
click the corresponding authorization on the phone end to connect.
Q: How do you get the sound through the car horn?
A: There are three points about the sound problem:
1. Our device comes with a small speaker that can make sound, you can turn it off by setting; 2. 2. Transmit the sound to the original car radio through the FM transmission function of the device (for example, select 86.3MHZ on the device, and then play the U disk music, then search 86.3MHZ on the car radio);
3. Use the 3.5mmAUX cable to transmit the audio to the original carplayer through the AUX OUT interface of the machine (some models do not support this function, please see the interface description of the product for details).
Q: The Bluetooth connection fails, or some functions are abnormal after connection?
A: Please use your mobile phone to search for Bluetooth of the machine, and the name is /''carplay/''; Delete the devices that have been paired with but are not connected to the phone. Some Bluetooth devices that have been paired with each other may cause the phone's
Bluetooth cannot be paired with other devices or its function is abnormal.
Q: Will Bluetooth connection not automatically connect to car paly or Android auto?
A: Some connected Bluetooth devices will cause our device to fail to jump automatically. Please clear all paired Bluetooth devices
on the mobile phone, restart the Bluetooth of the mobile phone and the vehicle device, and re-establish the Bluetooth connection.
Q: Playing music and talking on the phone too quietly?
A: Hold down the top of the screen with your finger and slide down. You can adjust the playing volume after pulling down the status
bar; When you return to the home screen during a call, you can adjust the call volume in the status bar.
Q: Can't remember time and date?
A: Because of the high temperature in the car in summer, in order to ensure safety, the machine does not have a battery, so it
cannot remember the time and date. After connecting the mobile phone, it will automatically update the time and date.
Q: Can't read or play SD, USB music and videos?
A: Please use 8G or 16G storage card or USB flash drive. Some large-capacity storage devices may not support it. Format the
storage device to ensure that the storage device's file system is the default value; Partially encoded video or music may not be recognized by the machine, please use common format media files.
